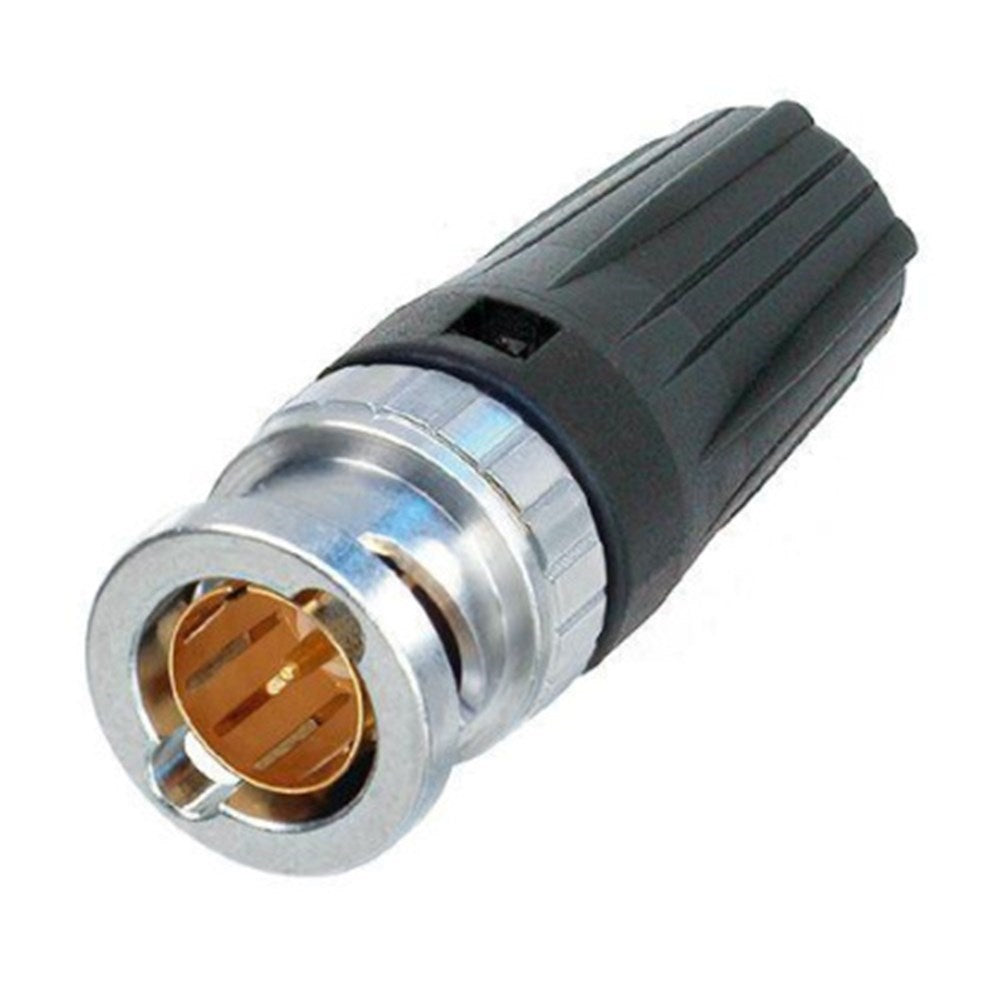

NBLC75BVZ17

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD).

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications.

Suitable cables:
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere

Crimp size:

• Pin: 1.8 mm
• Shield: 10.0 mm (hex)

Features & Benefits

• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 Ω design meets the stringent HDTV / DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include crimp tool and dies

Specifications

Product

Title

• NBLC75BVZ17

Connection Type

• BNC 75 Ω

Gender

• male

Electrical

Contact resistance

• ≤ 3 mΩ (inner)

Contact resistance

• ≤ 2 mΩ (outer)

Dielectric strength

• 1,5 kVdc

Impedance

• 75 Ω

Insulation resistance

• > 5 GΩ

Rated voltage

• <50 V

VSWR

• ≤1.050/>32 dB up to 1 GHz
• ≤1.065/>30 dB up to 2 GHz
• ≤1.100/>26 dB up to 3 Ghz

Mechanical

Cable O.D.

• 10.4 mm

Cable retention

• > 30 N (Center)

Crimp size

• 10.0 mm (HEX)

Crimp size (pin)

• 1.8 mm

Insertion force

• < 25 N

Lifetime

• > 1000 mating cycles

Locking device

• Bayonett

Cable anchoring

• Jacket crimping

Material

Contacts

• Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

InsertPTFE

• ShellBrass (CuZn39Pb3)

Shell plating

• Optalloy®

Environmental

Temperature range

• -30 °C to +85 °C

Contact crimpability

• Complies with IEC 60803 and IEC 60352-2
