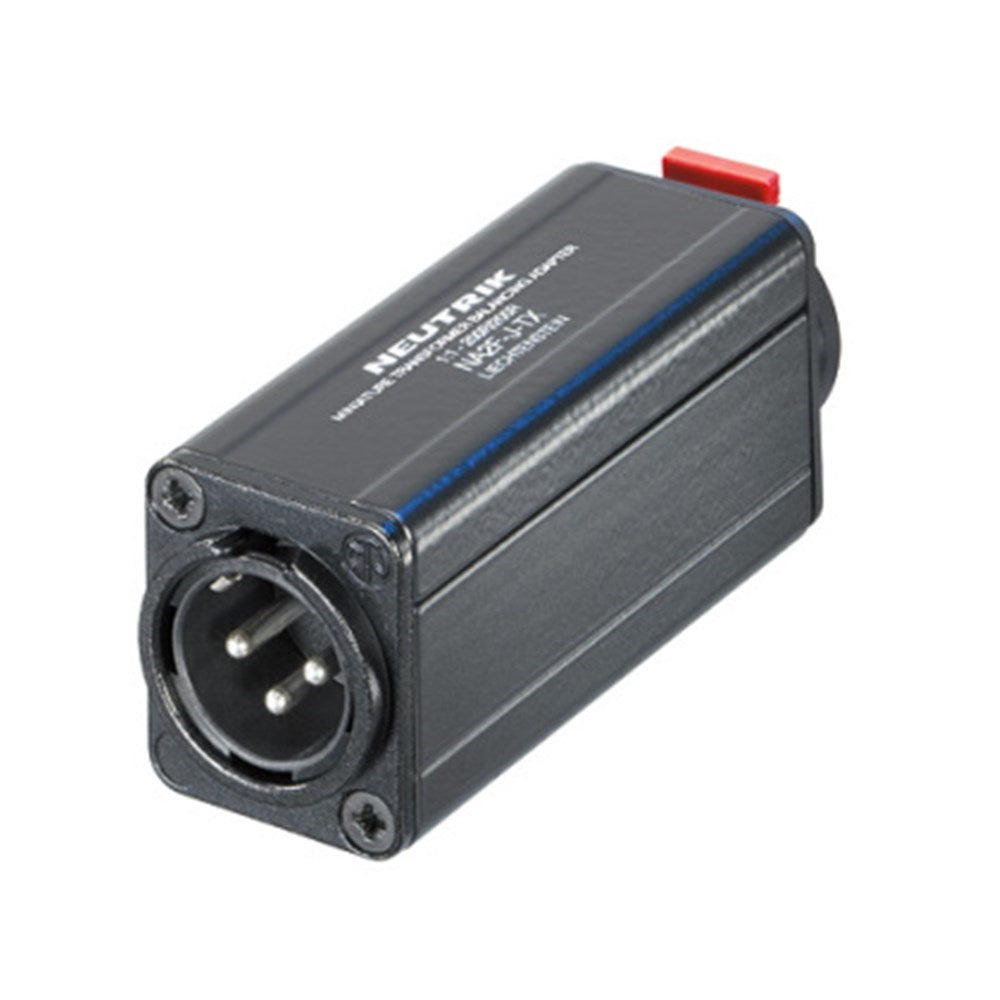

NA2M-J-TX

Miniature transformer balancing adapter, 3 pole XLR male - 1/4" Jack, ground lifted

Miniatur transformer balancing adapters

Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required

Audio transformer 1:1
Impedance ratio: 200:200
Source/load impedance in Ohm: 200/2k, (600/10k)
Max. Input level (@ 50 Hz, 1% THD): -3 dBu

Features & Benefits

• The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
• Rugged aluminium extrusion housing for best reliability
