NAO2S-H1W-A

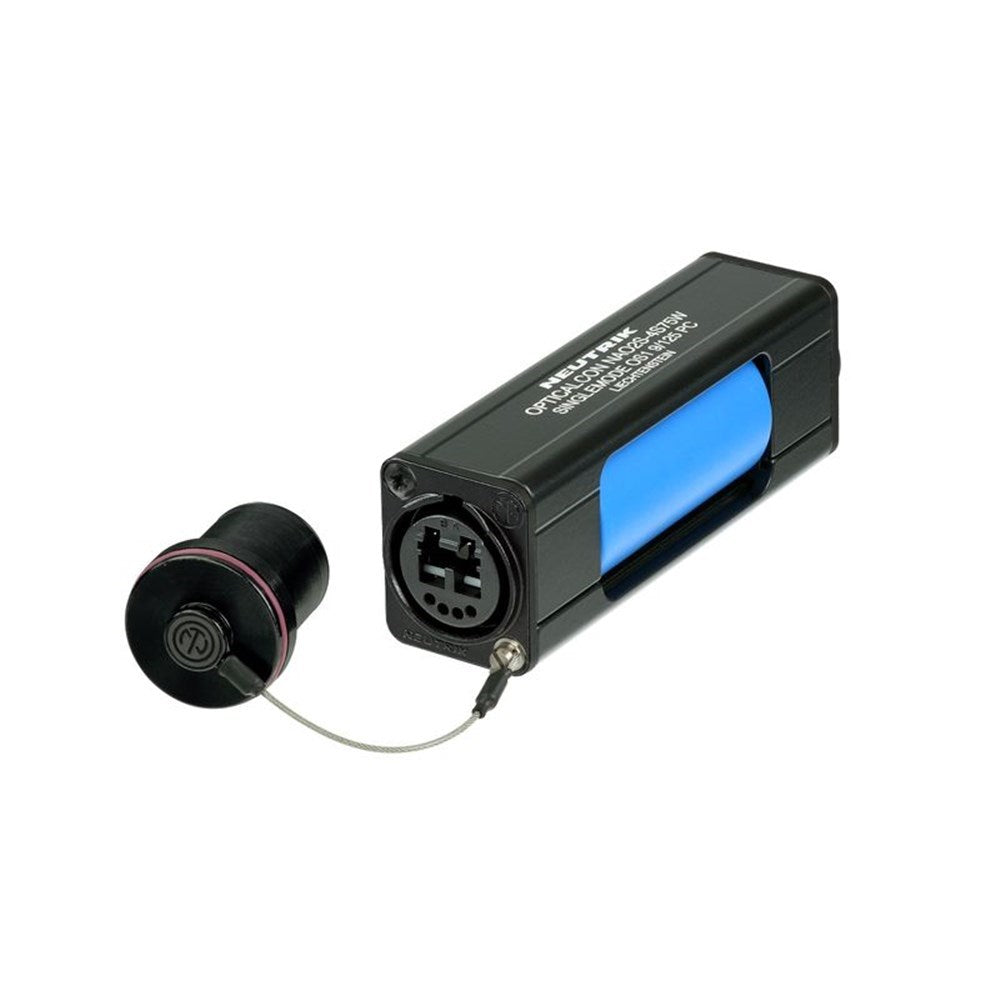

Weatherproof opticalCON DUO coupler (adapter) LC-Duplex for cable extensions with 4 copper wires (0.75 mm²).

Specifications

Product

Title

• NAO2*-H1W-A

Connection Type

• Adapter

Gender

• female

Electrical

Contact resistance

• < 7 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 2 GΩ (initial)

Rated current per contact

• 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)

Rated voltage

• < 50 V (1)

Mechanical

Insertion force

• < 45 N

Withdrawal force

• < 45 N

Lifetime

• > 1000 mating cycles

Locking device

• Push-Pull

Material

Contact plating

• 0.2 µm Au over 2 µm Ni

Contacts

• Bronze (CuSn6)

Insert

• Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)

Shell

• AlMgSi 0.5, black plated

Split sleeve

• ceramics

Environmental

Temperature range

• -30 °C to +80 °C

Optical

Insertion loss

• < 0.4 dB / connection

Optical connector

• LC-Duplex

Product specific
(1)

• Not compatible to the SMPTE standard, suitable for indoor studio applications acc. IEC 60664-1 (pollution degree 1, over voltage category 1)
