NJ3FP6C

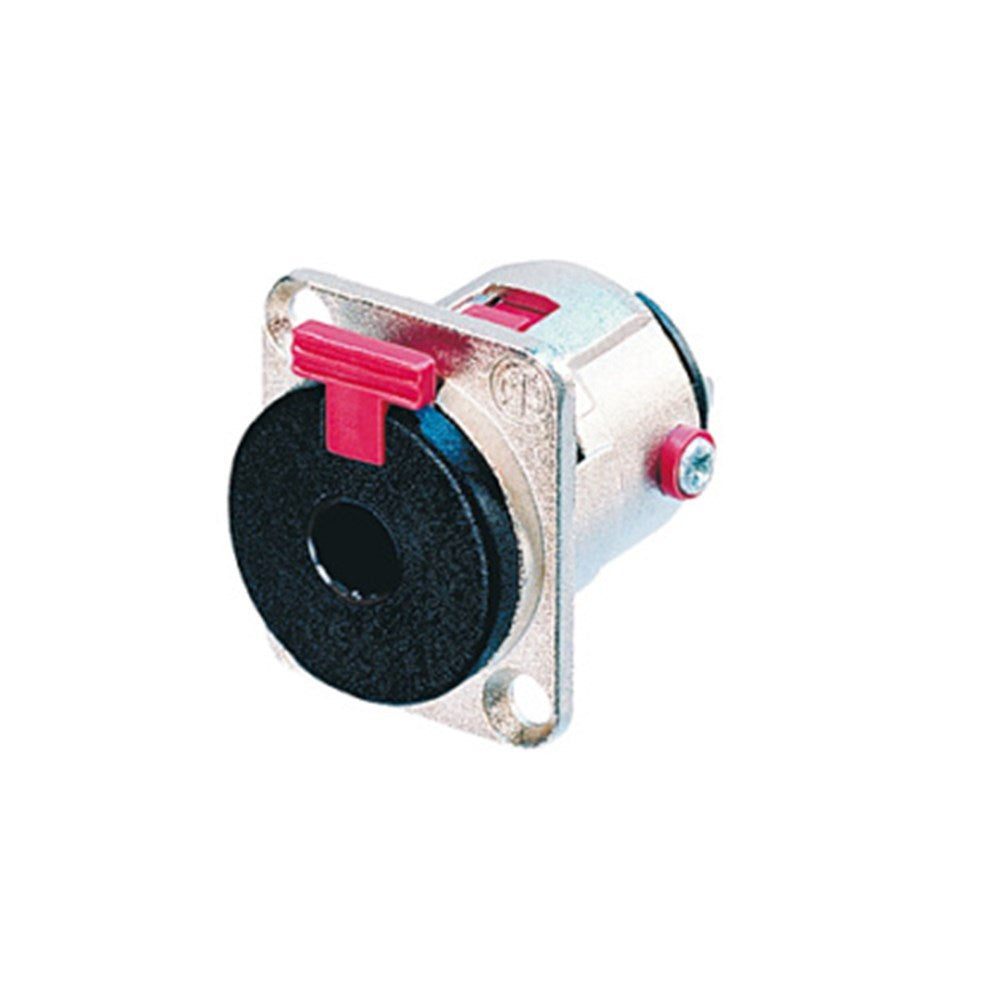

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Features & Benefits

• Securely locking chassis jack
• Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
• Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
• Dimensionally compatible with D Series (31 x 26 mm)
• Solder terminals
