NBNC75BUU11

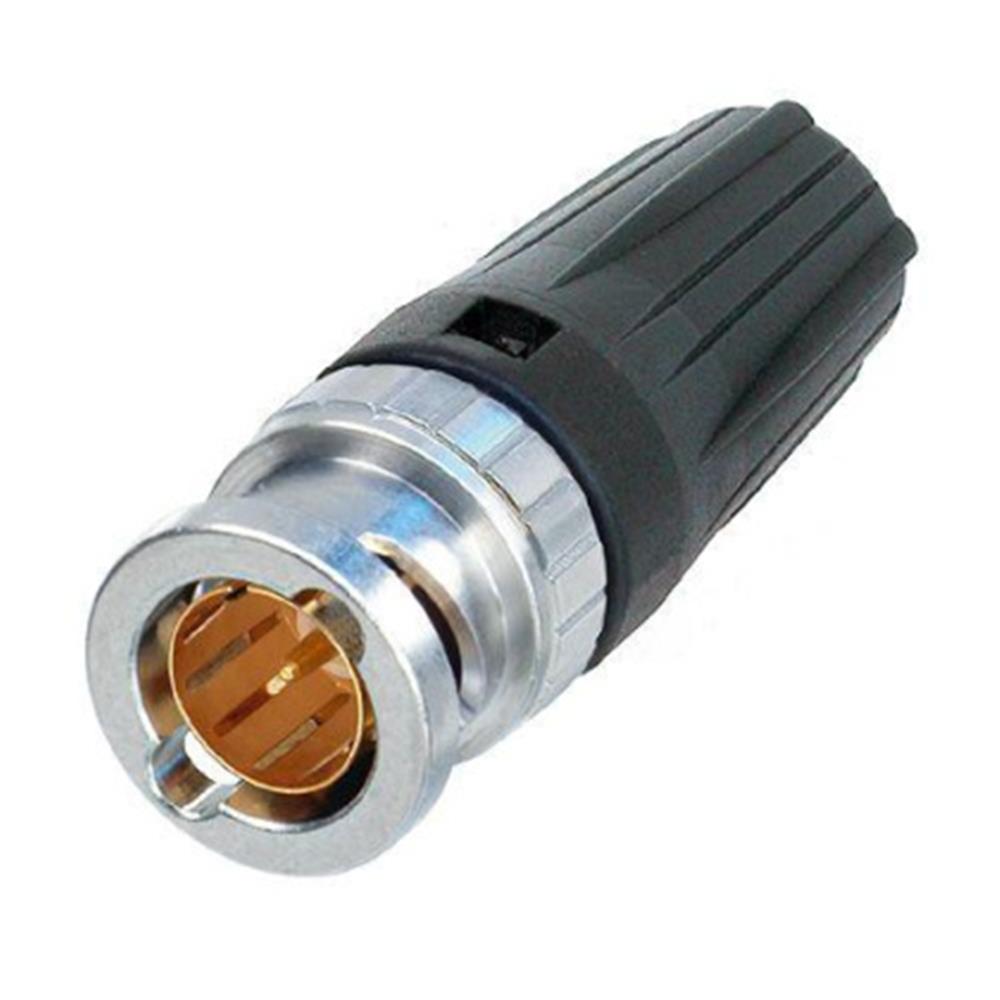

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Argosy Image 1000, Canford SDV-F, Canford SDV-XF, Cordial CVI 10-48 HD, Draka 1.0/4.8 AF, Draka 755-901/5, Klotz V10/48, Percon VK7

Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

Features & Benefits

•    “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
•    Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
•    True 75 Ω design meets the stringent HDTV / DVD requirements
•    Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
•    Snug-fit center pin insert provides tactile feedback
•    Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
•    Excellent cable protection and retention
•    Precise Swiss machined brass parts for outstanding durability
•    Accessories include color coded boots in 10 standard colors, crimp tool and dies
