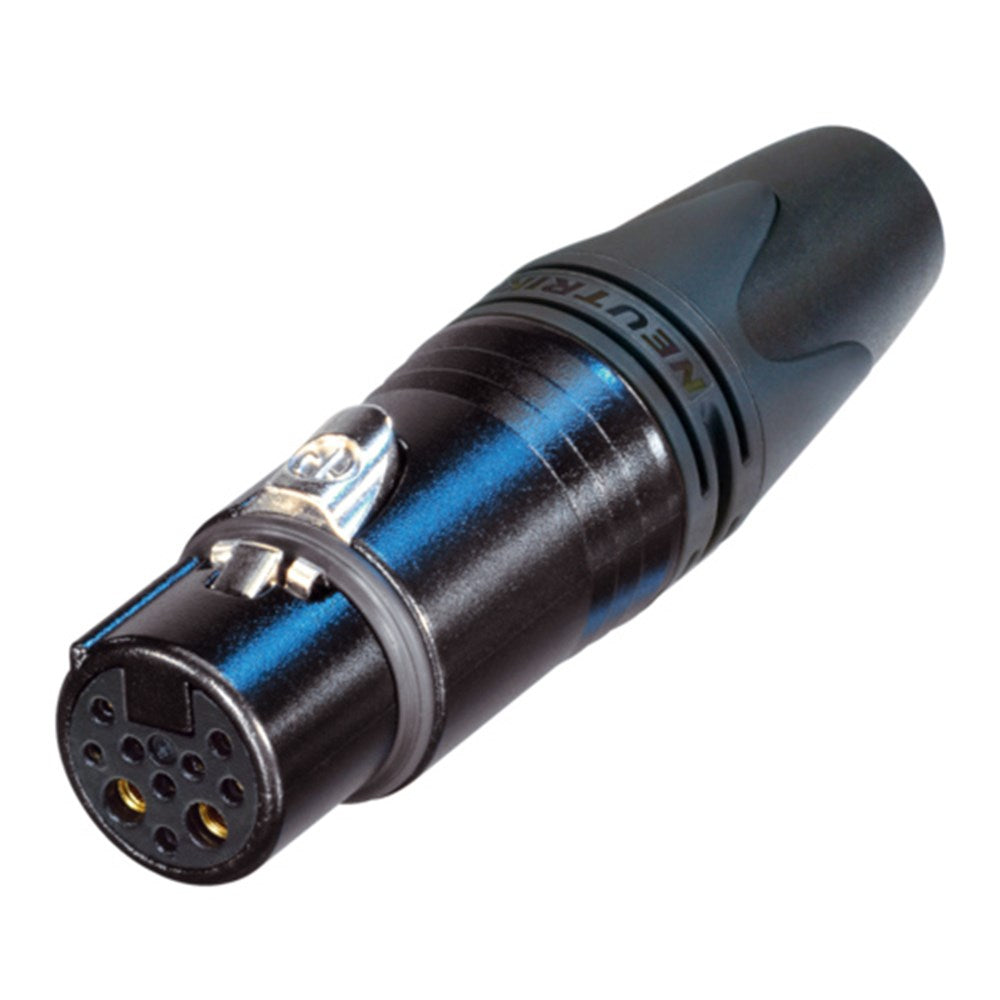

NC10FXX-14-B

Easy to assemble 8 + 2 pole female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief

Features & Benefits

• Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
• Superior ruggedness compared to RJ45 type connectors
• All metal housing offers best overall RF protection and electromagnetic shielding

Specifications

Product

Title

• NC10FXX-14-B

Connection Type

• XLR

Gender

• female

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 1 kVdc

Insulation resistance

• > 10 GΩ (initial); 0.1 (after damp heat test)

Number of electronical contacts

• 8 + 2

Rated current per contact

• 16 A (power pins), 3 A (data pins)

Cable shield - shell connection:

• choosable

Transmission performance

• CAT 5e

Mechanical

Cable O.D.

• 8.0 - 10.0 mm

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiresize

• 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material

Bushing

• PA / PU

Contact plating

• 0.2 µm Au hard alloy over 2 µm Ni

Contacts

• Brass (CuZn39Pb3)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Zinc diecast (ZnAl4Cu1)

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Black chromium

Strain relief

• POM

Environmental

Flammability

• UL 94 HB

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C

Manufacturing Standard

• IEC 61076-2-103
