NC10MD-LX-B

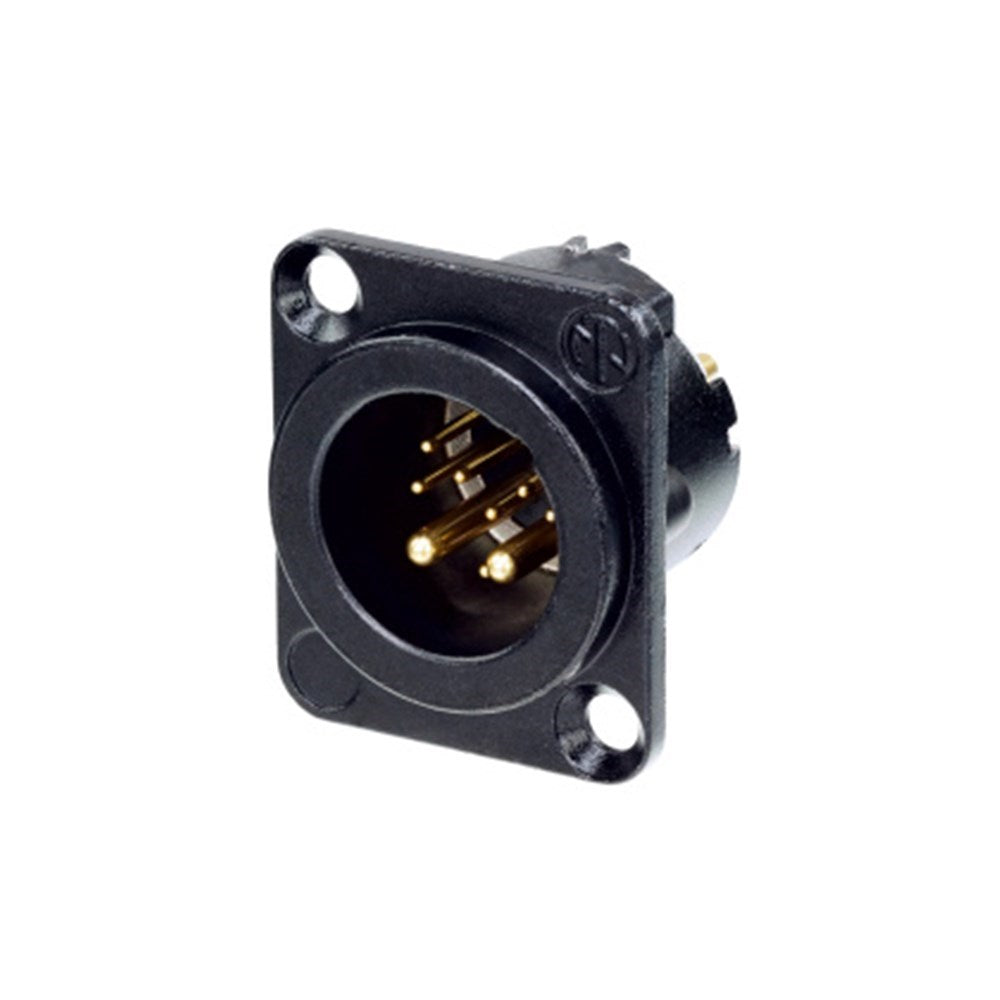

10 pole male D-size receptacle, black chrome metal housing, duplex ground contact

Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief.

Features & Benefits

• Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
• Superior ruggedness compared to RJ45 type connectors
• All metal housing offers best overall RF protection and electromagnetic shielding
• D-size housing provides installation compatibility with industry standard D mounting dimensions
• Receptacle with duplex ground contact for excellent signal integrity

Specifications

Product

Title

• NC10MD-LX-B

Type

• Chassis

Connection Type

• XLR

Gender

• male

Electrical

Contact resistance

• ≤ 3 mΩ

Dielectric strength

• 1 kVdc (initial), 0.1 GΩ (after damp heat test)

Insulation resistance

• > 10 GΩ

Number of electronical contacts

• 8 + 2

Rated current per contact

• 16 A (power pins), 3 A (data pins)

Transmission performance

• CAT 5e

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiresize

• 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material

Contact plating

• 0.2 µm Au hard alloy over 2 µm Ni

Contacts

• Brass (CuZn39Pb3)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Black chromium

Environmental

Flammability

• UL 94 HB

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C

Manufacturing Standard

• IEC 61076-2-103
