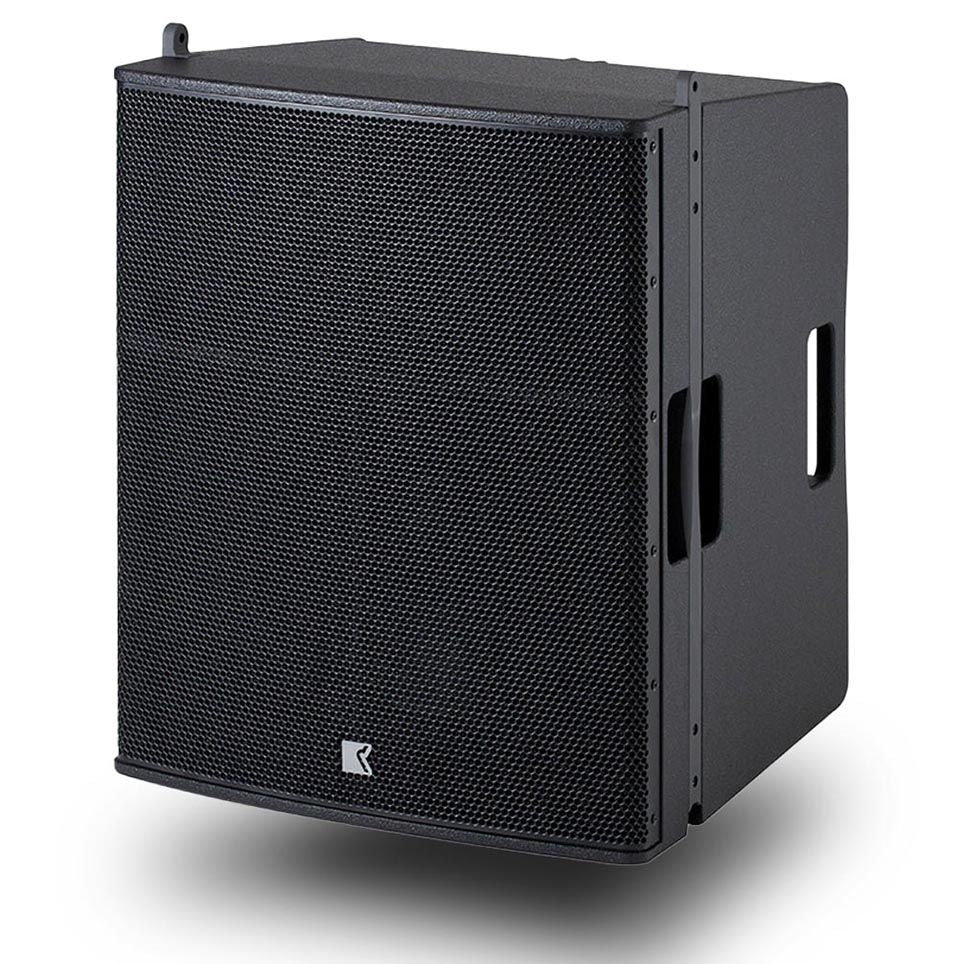

Outline FLYSUB15 Flyable Subwoofer 1 × 15″

Engineered for touring professionals and discerning installers, the Outline FLYSUB15 delivers authoritative low-frequency extension in a remarkably compact, flyable format. Pair it with the EIDOS 265 LA line-array and experience a turnkey system that reaches down to 35 Hz while maintaining pristine clarity even at extreme sound-pressure levels.
Precision Low-Frequency Performance

A custom 15″ transducer featuring a 76 mm voice coil and double-spider suspension is bass-reflex loaded on an oblique baffle, creating secondary loading that enhances tonal balance and reduces distortion. The result is an honest, musical low end that retains definition from subtle cues to full-throttle impact.
Rugged, Touring-Grade Construction

Crafted from premium birch plywood and internally braced to eliminate resonances, the FLYSUB15 is protected by a steel grille backed with acoustically transparent foam. Four recessed handles and optional flight cases simplify transport, while high-grade coatings resist stress, corrosion and abrasion in the most demanding environments.
Effortless Integration & Rigging

The ultra-light suspension hardware allows up to six FLYSUB15 cabinets to be flown with selectable inter-box angles from 0° to 8° in 1° steps, preserving sight lines and acoustic coverage. Two NL4 connectors wired in parallel facilitate daisy-chaining, enabling two subwoofers to share a single channel of the recommended Outline T5-DSP amplifier.
Key Features

Optimised low-frequency reinforcement for EIDOS 265 LA arrays

35 Hz–550 Hz response, 500 W AES handling, 134.5 dB free-field output

Custom 15″ woofer with double-spider suspension for minimal distortion

Fly up to six units via integrated, corrosion-resistant hardware

Compact trapezoidal enclosure minimizes visual impact on stage
