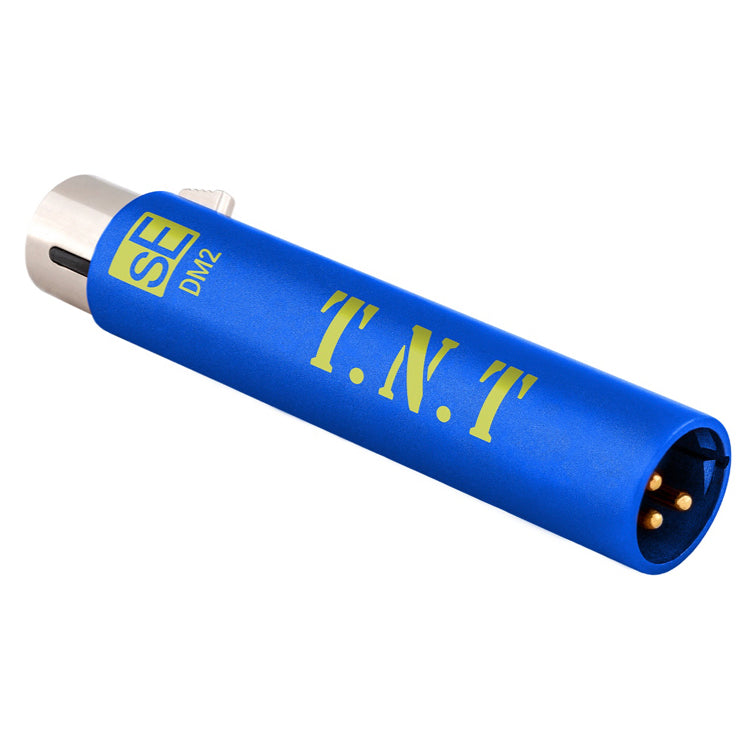

The DM2 TNT: explosive level for all your passive mics.

\nThe DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone. \n

Switchable, clean and consistent gain from moderate +15dB to explosive +30dB

\n

\n
• designed for neutral, balanced sound quality with minimal noise
\n
• explore eight settings ranging from an unconventionally low 50 ? to stunningly high 10 M? to match your preamp with any mic accurately
\n
• two gain levels for even higher flexibility on various sources
\n
• ruthlessly boosts the signal independent from load impedance or cable length
\n

\n

\n

Slim, rugged, all-metal housing with Premium finish

\n

\n
• efficient rejection of any electrical interference and noise
\n
• high-quality finish ensures a great look for many years
\n
• slim design allows for easy placement in the studio or on stage
\n

\n \n \nFor optimum results, we recommend you plug the DM2 directly into your microphone’s output. If necessary, a cable can be used between the microphone and the DM2 - but the shorter the cable, the better the overall performance will be. Not for active microphones. \n

\n

\n

IN THE BOX

\n

\n
• DM2
\n
• sE Logo Sticker
\n
• User manual with warranty card
\n

\n

SPECIFICATIONS

\n

\n
• Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
\n
• Gain: 15 dB / 30 dB
\n
• Max output level (0.5% THD): 9.5 dBV (3.0 V)
\n
• Output noise level: 1 ?V @ 15 dB / 6.6 ?V @ 30 dB
\n
• Powering: 48 Volts according to IEC 61938
\n
• Electrical impedance: 135 Ohms
\n
• Recommended load impedance: >1k Ohms
\n
• Current consumption: 3.1 mA
\n
• Connectivity: 3-pin male/female XLR connector
\n
• Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
\n
• Weight: 80 g (2.82 oz.)
\n

\n

REQUIREMENTS

\n

\n
• input: passive microphone (ribbon/dynamic)
\n
• output: preamp/mixer/audio interface providing 48V phantom power
