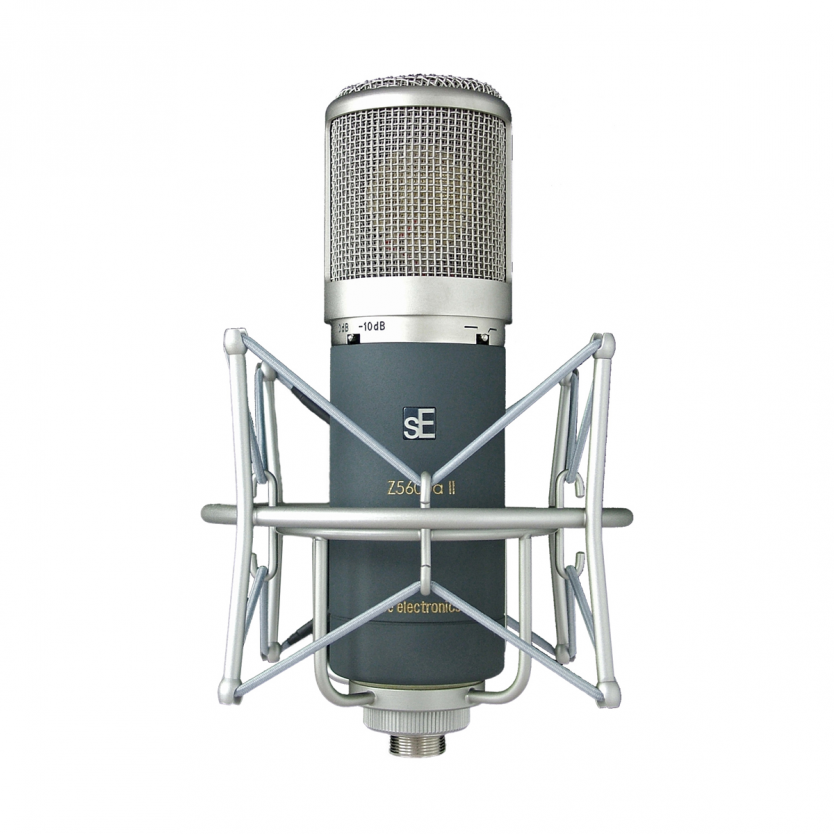

The Z5600a II: a thick, rich tube mic that will flatter any source.

\nWith nine polar patterns, the Z5600a II is ready to record absolutely anything. \n \nThe Z5600a II large-diaphragm condenser is one of the most versatile tube mics in today's market. With 9 graded steps through omni, cardioid and figure eight patterns, -10dB pad and bass cut, the Z5600a II finds uses in a huge number of applications, from miking a live drum kit to overheads on a choir. Above all though, this excellent mic has won its praise on delivering superb vocal recordings, with natural warmth and incredible detail. \n \n* This beautiful mic comes in a wooden presentation case, cradled in a full aluminium flight case with a large shockmount and a brushed aluminium PSU with pattern switching and cables. \n

SPECIFICATIONS

\n

\n
• Capsule Type: Hand-Crafted True Condenser
\n
• Diaphragm: 35mm Twin Gold/Mylar
\n
• Directional Pattern: Cardioid, Omni, Figure 8 and 5 intermediate stages (selectable on power supply)
\n
• Frequency range: 20 Hz - 20 kHz
\n
• Impedance: 200 Ohms
\n
• Sensitivity: 25.12 mV/Pa (-32 dB)
\n
• Max SPL: 125/135 dB (0/-10 dB pad) (0.5% THD @ 1kHz)
\n
• Signal to Noise Ratio: 76 dB
\n
• Self Noise: 18 dB(A)
\n
• Pass Filter Switch: 50 Hz
\n
• Preattenuation Pad: -10 dB
\n
• Power requirement: Dedicated PSU (included)
\n
• Weight (mic): 795g
\n
• Weight (PSU): 1459g
\n
• Tube complement: 1 x 12AX7/ECC83
\n
• Connectors: 8-pin army connector to mic, XLR from PSU
