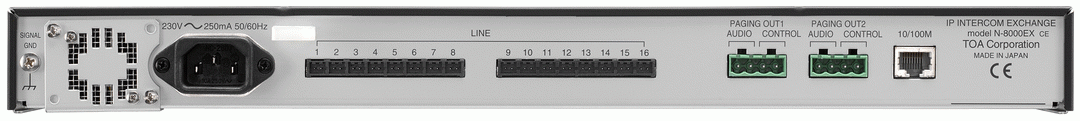

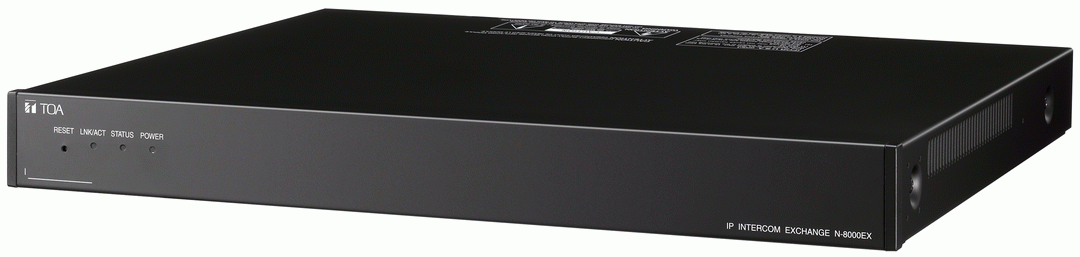

The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations, and features two outputs for public address paging. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket. ; 10/100BaseTX Ethernet network connection Occupies one network node ( 192 max.) Sixteen (16) station capacity Stations connect to exchange via two-wire twisted pair Provides 48 VDC to each station Speech links: 4 internal / 8 external Two (2) audio paging outputs (0 dBV) Two (2) relay outputs

• Uses packet audio technology to permit connection of up to sixteen N-8000 Series stations
