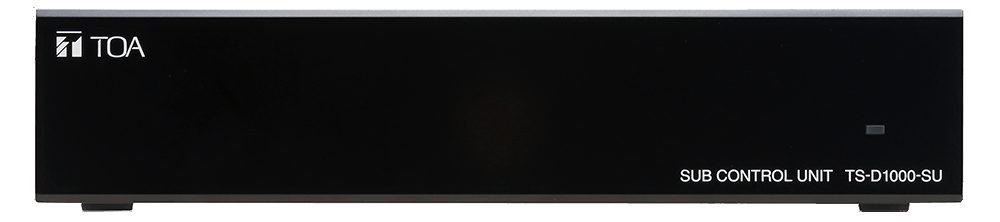

The TS-D1000-SU Sub Control Unit is exclusively designed to be used with the Digital Conference System, TS-D1000 Series. It allows easy expansion of the conference system by connecting it to the TS-D1100-MU Master Control Unit. Up to 48 Conference units can be connected to each Sub Control Unit using CAT5e STP LAN cables. And up to 5 Sub Control Units can be connected to the Master Control Unit using the supplied LAN cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

• Number of Connectable Units: 48 units
• Units Terminal: RJ45 connector x 3
• Master/Sub Control Units Terminal: RJ45 connector x 2
• Maximum Cable Distance: 50 m (between Sub Control Unit and terminal Chairman/Delegate unit at end of daisy chain)
