Paraphonic Dual Filter Analog Synthesizer

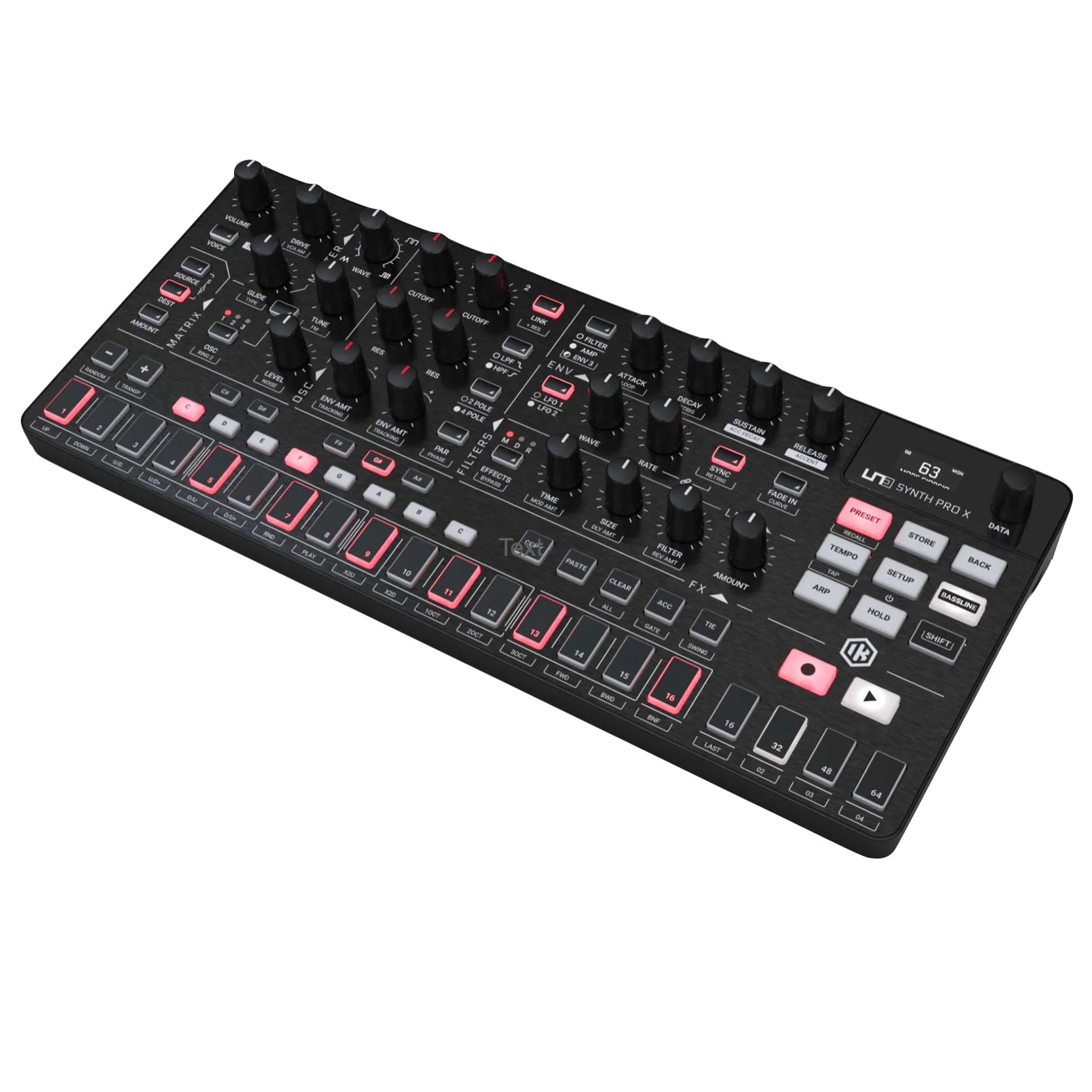

UNO Synth PRO X is a powerful and portable monophonic analog synthesizer with digital effects, built-in sequencer and arpeggiator.

Get creative

Featuring three discrete wave-morphing oscillators, the UNO Synth PRO X invites you to explore a vast sonic landscape. Unleash your imagination with PWM, sync, FM, and ring modulation capabilities: Your sonic palette knows no bounds.

Unrivaled sound sculpting

Discover a new realm of sonic possibilities with the UNO Synth PRO X’s dual-filter design, combining classic OTA and SSI-chip-based filters. Immerse yourself in the moment as you weave intricate textures and shape your sound to perfection. Dive deeper into sonic exploration with the 16-slot modulation matrix enabling you to create intricate and evolving textures.

Sound connection

Take complete control over your music with over 30 hands-on controls, providing immediate access to your sound-shaping tools. With USB, MIDI, CV and Gate in/out options, integrating the UNO Synth PRO X into your setup is effortless.

4 kinds of effects

With 10 studio-quality FX in three slots and an analog drive, your music will further come to life with warmth and character.

3 effects slots + analog drive
Vintage chorus and uni-vibe
5 different delays
Hall, plate and shimmer reverbs
FROM SEQUENCING TO ARRANGING

Unleash your creative potential, easily creating complex ever-evolving sequences. Try the 10-mode arpeggiator, equipped with a pattern designer to bring your melodies to life. New horizons are just around the corner with the Bassline mode, along with legato, mono and paraphonic modes, offering unprecedented expression of your musical ideas.

Advanced paraphonic 64-step sequencer
Per-step parameter recording with up to 48 parameters
Sequence randomizer that follows the scale you select
Parameter automation per step and real-time
10-mode arpeggiator with pattern designer
New Bassline mode plus legato, mono and paraphonic modes

The synth architecture provided by Sound Machines based on the IK Multimedia design presents an analog audio path and a digitally controlled engine with the following features:

3 wave-morphing oscillators
Sync and pulse-width modulation
FM and ring modulation
3-voice paraphony
OTA multimode filter with HP and LP mode
SSI chip-based LP filter with self-oscillation and 2/4 Pole slope
Serial and parallel filter configurations with phase inverting
3 full ADSR envelopes with looping option + 2 LFOs
16-slot modulation matrix
Analog drive circuit
3 FX slots – reverb, delay, modulation
256 user-editable presets
10-mode onboard arpeggiator
64-step sequencer with parameter recording
CV/Gate automation

Standalone or with keys for powerful sound creation – the iRig Keys 2 range: controls are mapped to oscillator shape & tuning

Seamless DAW integration

With 256 user-editable presets the UNO Synth PRO X is a playground for sonic fun and exploration. Effortlessly sculpt save and recall your own custom sounds recapturing every moment of your creativity. And with the included Editor/Librarian software providing seamless control from your Mac or PC anything becomes possible. The Editor works as both a standalone application and as a plug-in inside your favorite DAW. This means you can program and play the UNO Synth PRO X just like a virtual instrument.

Features
64-step paraphonic sequencer
Per-step parameter recording with up to 48 parameter
Forward, Backward and Back ‘n’ Forth play mode
Classic and modern accidents: accent, tie, gate and swing
Easy editing tools
10-mode Arpeggiator with pattern designer
Recordable arpeggio
4 Voice modes: Legato, Mono, Paraphonic and Bassline
3 Effects slots
Vintage chorus and uni-vibe
5 different Delays
Hall, Plate and Shimmer reverbs
Advanced Connectivity

Stereo balanced OUT with 2 x TRS Jack Connector
Stereo Headphone OUT with 3.5mm connector
Mono audio IN with 3.5mm mini TRS jack
2 x CV/Gate In connectors with 1/8” mini TS jack connectors
2 x CV Out connectors with 1x 1/8” mini TS jack connectors
MIDI 5-pin DIN connectors (IN/OUT)
USB-C Connector for MIDI, FW updates and portable Power
DC-IN barrel
SPECIFICATIONS

Dimensions

Size (W x D x H): 33.3 x 15 x 5 cm
Enclosure: Plastic
Weight: 800 g
Power: iRig PSU-3A (included) or USB (5V/1.5A, 7.5W or above)

Package includes

UNO Synth PRO X
USB-C Cable
Power Supply
Registration card
Quick start guide with QR code to the User manual
